Technical specifications
- Standard
- ASTM B49
- Grade
- UNS C10100
- Copper / oxygen
- 99.99% min. / 5 ppm max.
- Conductivity
- 101% IACS min.
- Diameters
- 8 to 20 mm

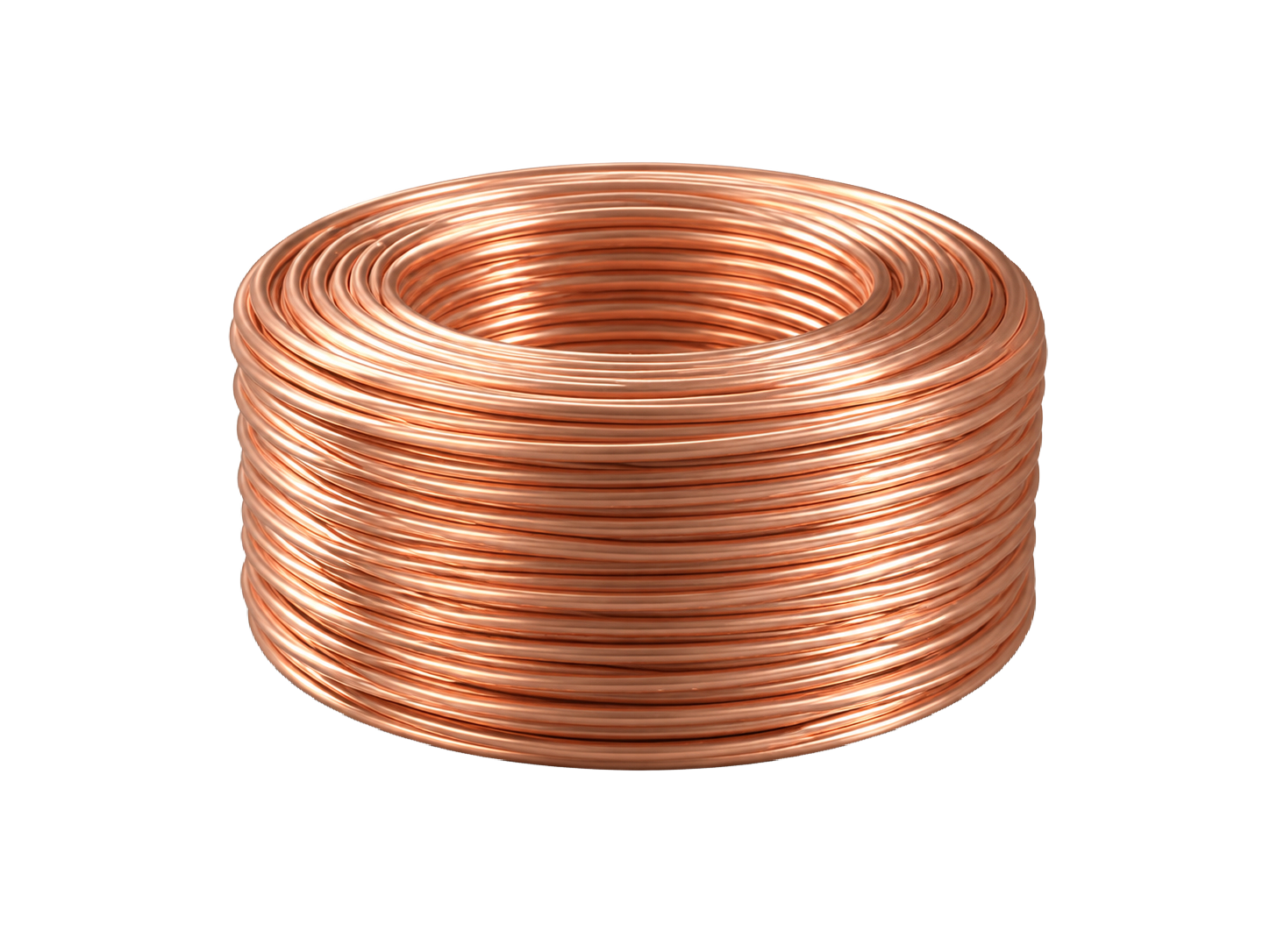

- Package
- Coil weights from 6,000 to 9,920 lb.
- Minimum order
8 mm and 20 mm: 1 coil
12.5 mm and 16 mm: 4 coils

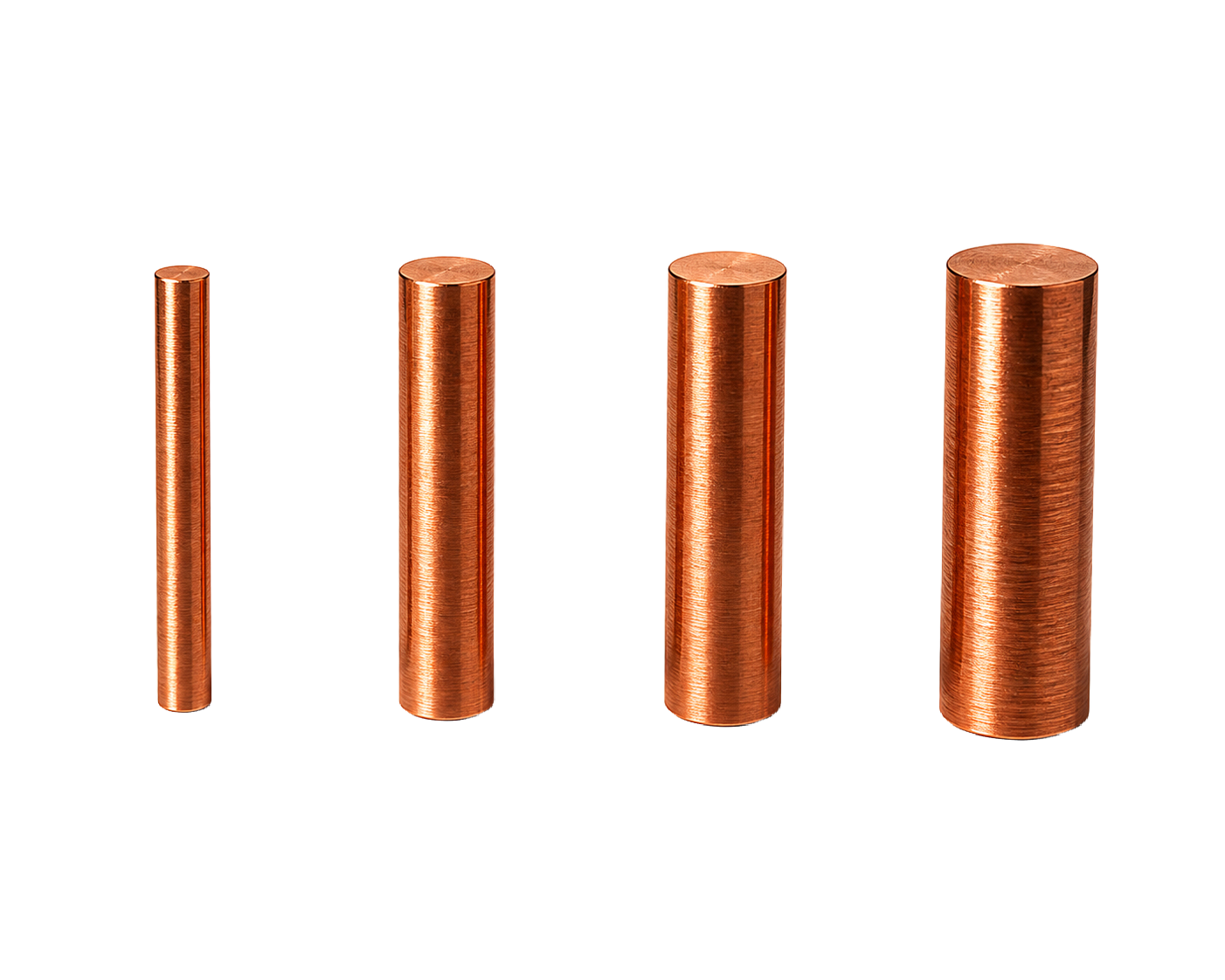

Diameters
Ø 8 mmstandard
Ø 12.5 mmstandard
Ø 16 mmavailable
Ø 20 mmavailable
Ideal for ultra-fine wire drawing and the production of magnet wire, specialty cable, and conductors for electronic applications.

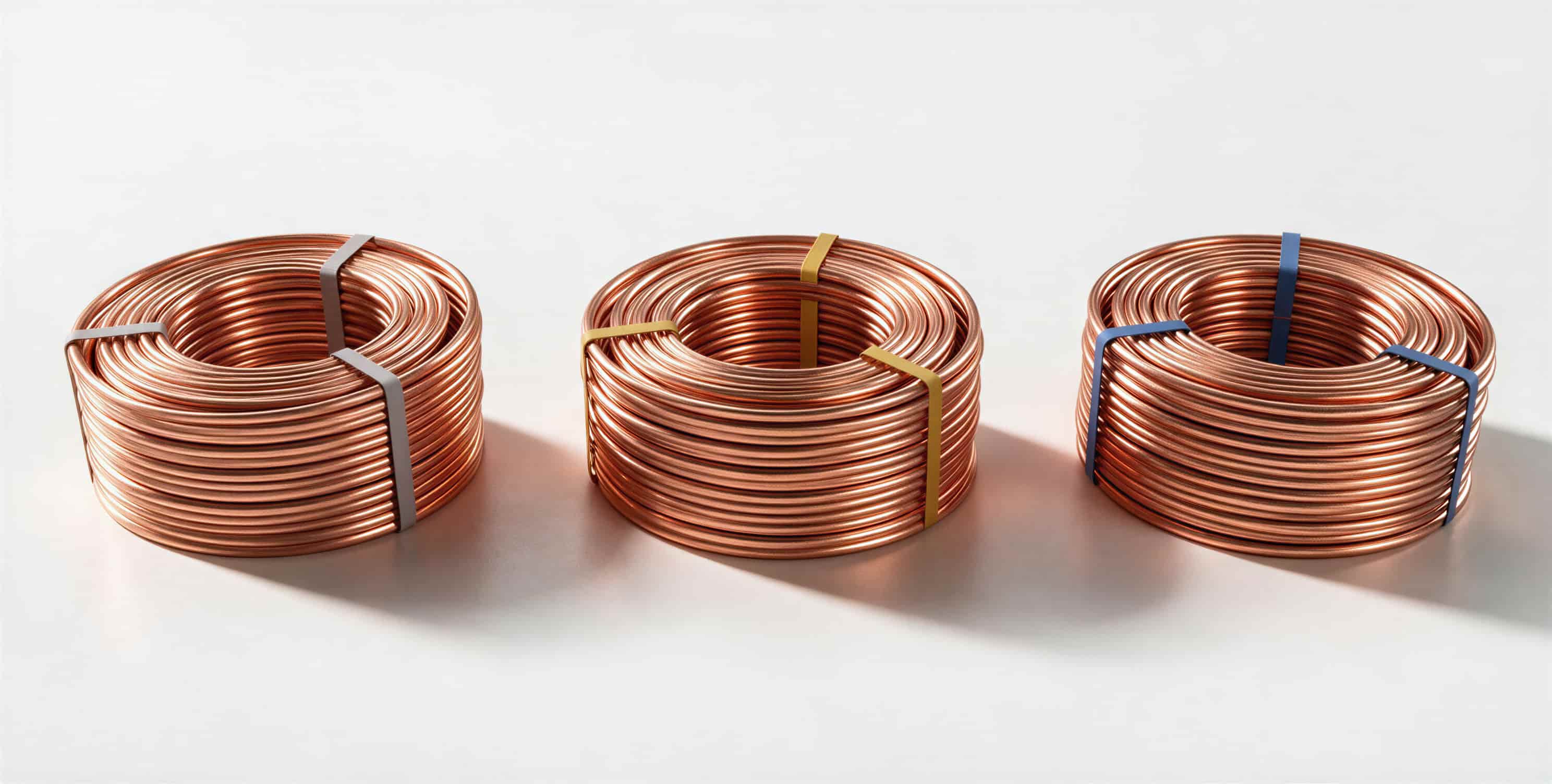

Made-to-order alloys
CuAg and CuSn alloy rod in custom diameters to meet your requirements, for applications requiring greater mechanical strength or heat resistance than pure copper.
Indicative, not to scale
Cu OFE
CuAg
CuSn
Electrical conductivity
Mechanical strength
| Alloy | Alloying element | What it adds | Typical applications |
|---|---|---|---|
| CuAg0.10C10700 | Silver 0.10% | Higher softening temperature and creep resistance, with near-pure-copper conductivity. | Windings, commutators, contact wire |
| CuSn0.30C14425 | Tin 0.30% | Higher strength and wear resistance, with good conductivity. | Contact wire, high-strength conductors |
CuAg0.10 and CuSn0.30 above are examples of the alloys we can produce. Alloying element content can be tailored to your requirements.
Send us your spec
Include the grade or alloy, diameter, number of coils and delivery destination. Special diameters are made to order from 10 t. Final specifications are confirmed with each order.
